HH M TS7 /TS7P

The HH L TS7 and TS7P are Hetronic’s largest pistol-grip transmitters, delivering high-function control in a rugged, ergonomic form.



Designed for operators who need access to multiple control inputs without sacrificing portability, these transmitters are built to manage more complex machines—all with a single hand.

Hetronic HH M TS7 & TS7P Pistol Grip Transmitters
Expanded Pistol-Grip Control for Demanding Applications

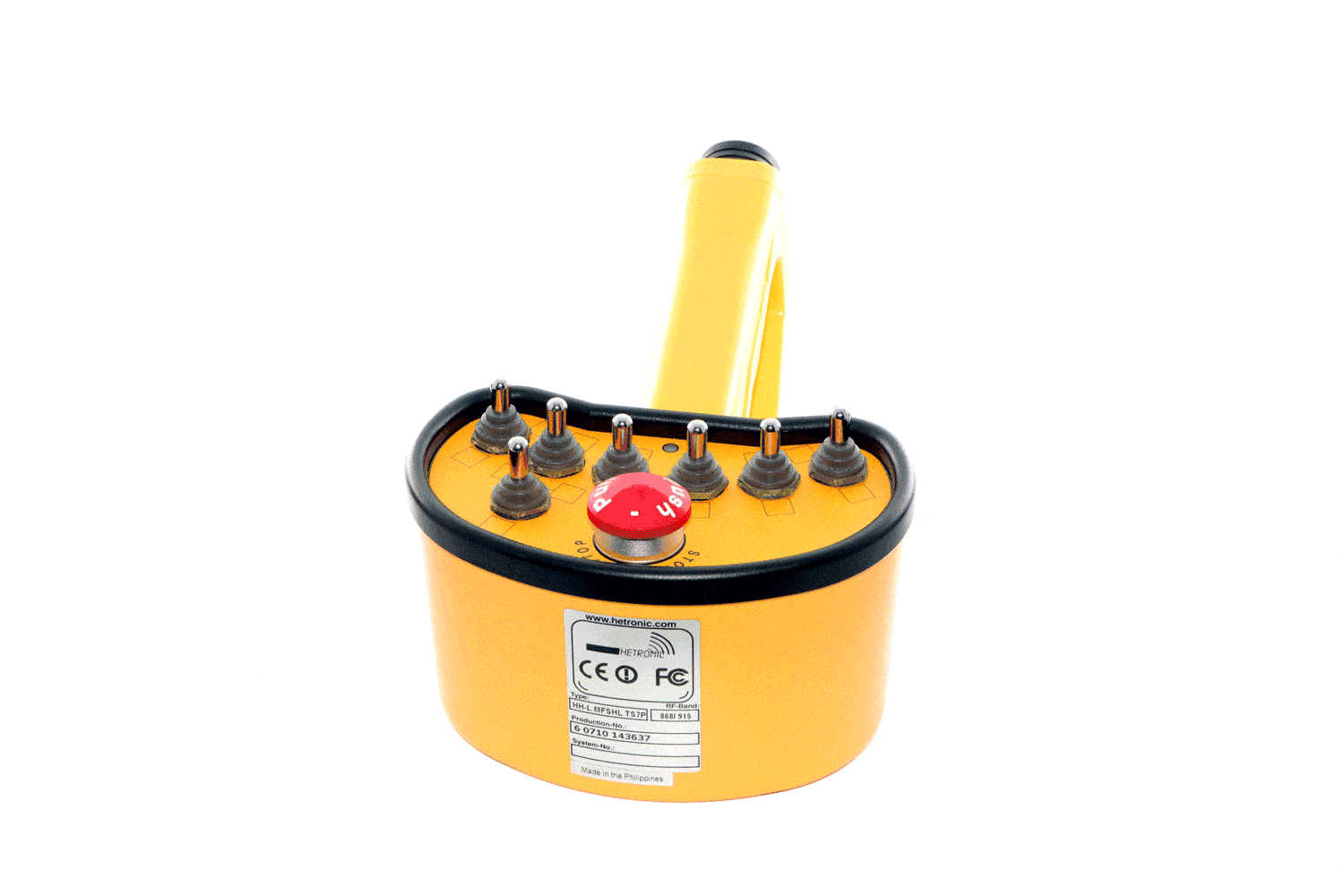

Hetronic HH M TS7 GIF image
Weight

Up to 590gr (1.3 lbs)

Batteries included

IP Rating
IP65
Dimensions

H: 214mm (8.4″)

W: 148mm (5.8″)

D: 86mm (3.4″)

Operating Temperature Range

-20C to +70C

(-4F to +158F)

Frequencies

4xxMHz

8xxMHz

​

H-Link
Not Applicable

Built for More Functions, Without Adding Complexity

The HH L TS7 features seven (7) three-position momentary toggle switches, each with spring-return-to-center action. Whether you’re controlling lift arms, stabilizers, or auxiliary systems, this transmitter gives you access to a broad set of functions while maintaining fast, consistent responsiveness.

​

A prominent Push/Pull STOP switch is located at the top of the unit for immediate, intuitive emergency shutdown. For applications requiring variable control, the HH L TS7P variant adds a proportional gray-code trigger embedded in the grip—ideal for precise speed or directional control during sensitive operations.

Standard Features Include:

  • Four (4) three-position momentary (spring return-to-center) toggle switches

  • Push/Pull STOP switch for reliable emergency shutdown

  • Proportional gray-code trigger (TS7P variant only)

  • Powered by two (2) AA batteries

  • Rugged housing with pistol-grip design for one-handed control

Designed for Work That Demands Control

The HH L TS7 series gives operators the benefit of a high-function transmitter in a compact, pistol-grip form factor. Whether mounted on a service truck, used in field maintenance, or integrated into lifting and positioning systems, it’s a powerful, easy-to-deploy solution for demanding field applications.

Get with the experts to custom configure a solution for your application.

Customize it with us.

Designed, Engineered and Assembled in Canada
