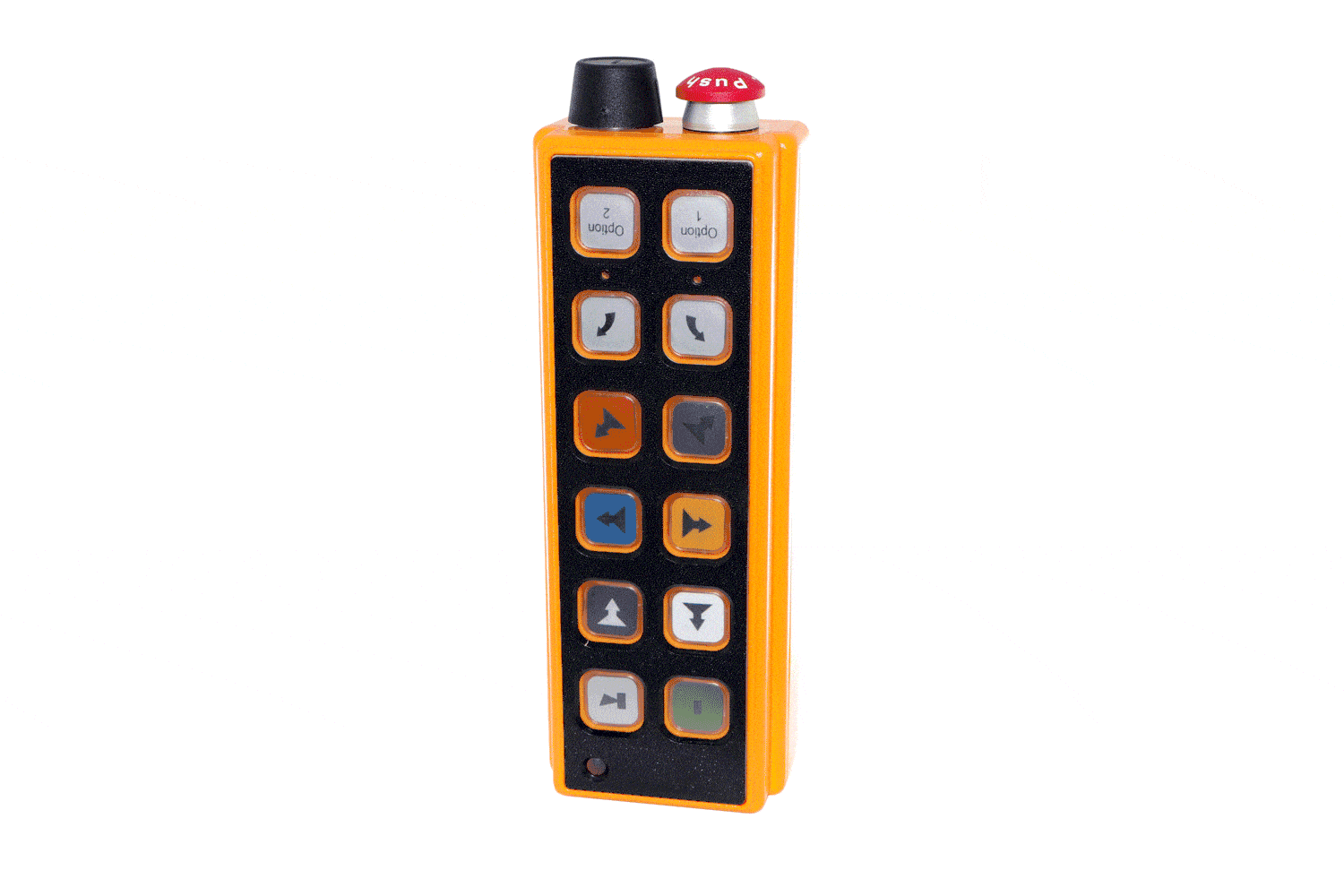

TG Handheld Transmitter

Pendant-Style Precision, Built for the Tough Stuff

Originally engineered for the unrelenting demands of steel mills and heavy industrial environments, the TG handheld transmitter strikes a smart balance between compact design and industrial-grade durability. Its one-hand operation and intuitive layout make it a reliable partner where productivity and safety go hand in hand.

PRODUCT INFO (PDF)

Weight

950gr (2.1 lbs)

Battery and belt included

Dimensions

H: 255mm (10.0″)

W: 88mm (3.5″)

D: 58mm (2.3″)

Frequencies

4xxMHz

8xxMHz

9xxMHz

2.4GHz

IP Rating

IP65

Operating Temperature Range

-20C to +70C

(-4F to +158F)

H-Link

Not Applicable

Designed for Familiar Feel, Refined for Remote Use

With its pendant-style grip and rugged pushbutton interface, the TG offers operators a natural, no-learning-curve transition from hardwired pendant controls to the freedom of wireless operation.

Standard configuration includes:

Eight (8) dual-speed push buttons
Two (2) latching, single/dual-speed configurable buttons
Large, unmistakable STOP switch
Integrated Key-Switch for access control
Front-facing status LED for quick visual feedback

Powered for the Long Haul

Outfitted with a Hetronic 9.6V NiMH rechargeable battery, the TG transmitter is built for continuous use—even in environments where temperatures soar and downtime is not an option.

Built Tough, Built Smart

The TG may be lightweight, but it’s not lightweight when it comes to reliability. Whether in a factory, foundry, or fabrication yard, it’s designed to withstand shock, heat, and harsh handling without missing a beat.

Customize as You Need

While the standard TG DIG V1 fits most applications out of the box, the platform can be fully customized to align with your unique equipment and workflow.

Get with the experts to custom configure a solution for your application.

Contact us
